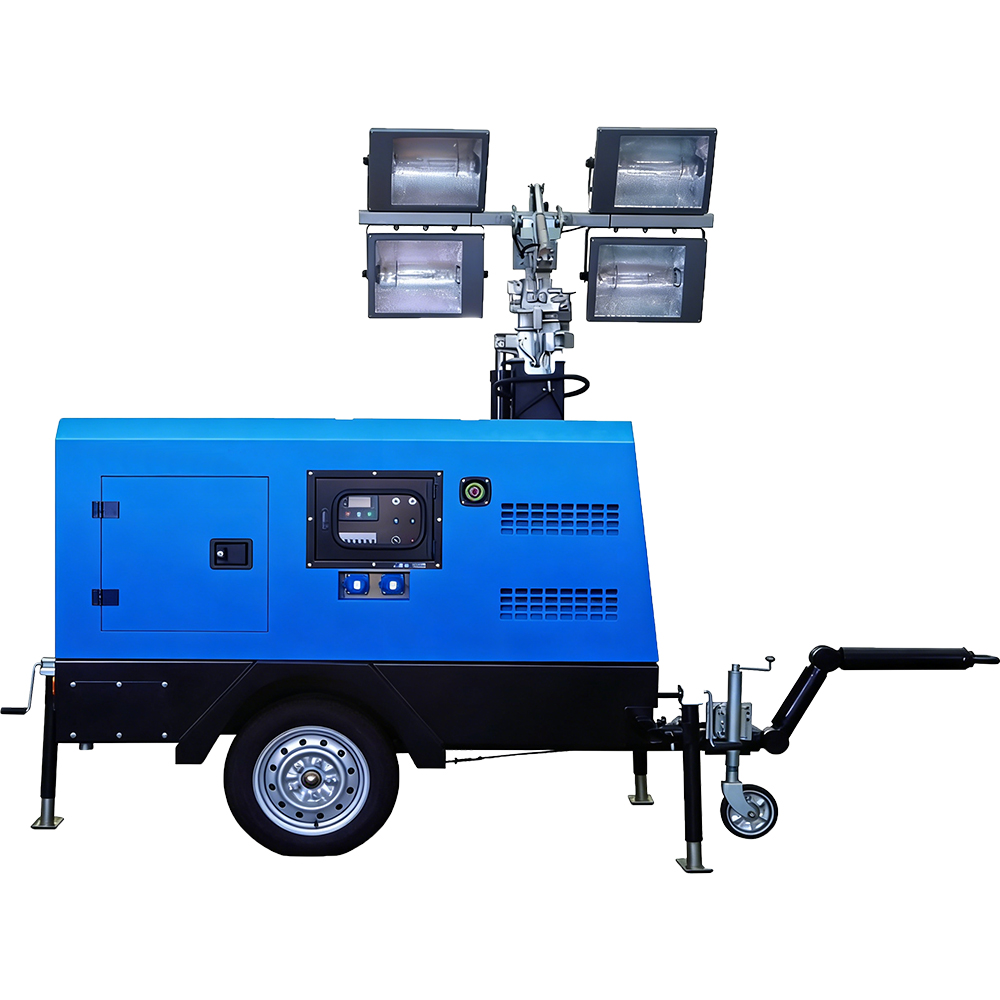

Light Tower
Kubota / HZ engines to provide reliable power
Mecc alte / Sincro / HZ alternator for stable output.

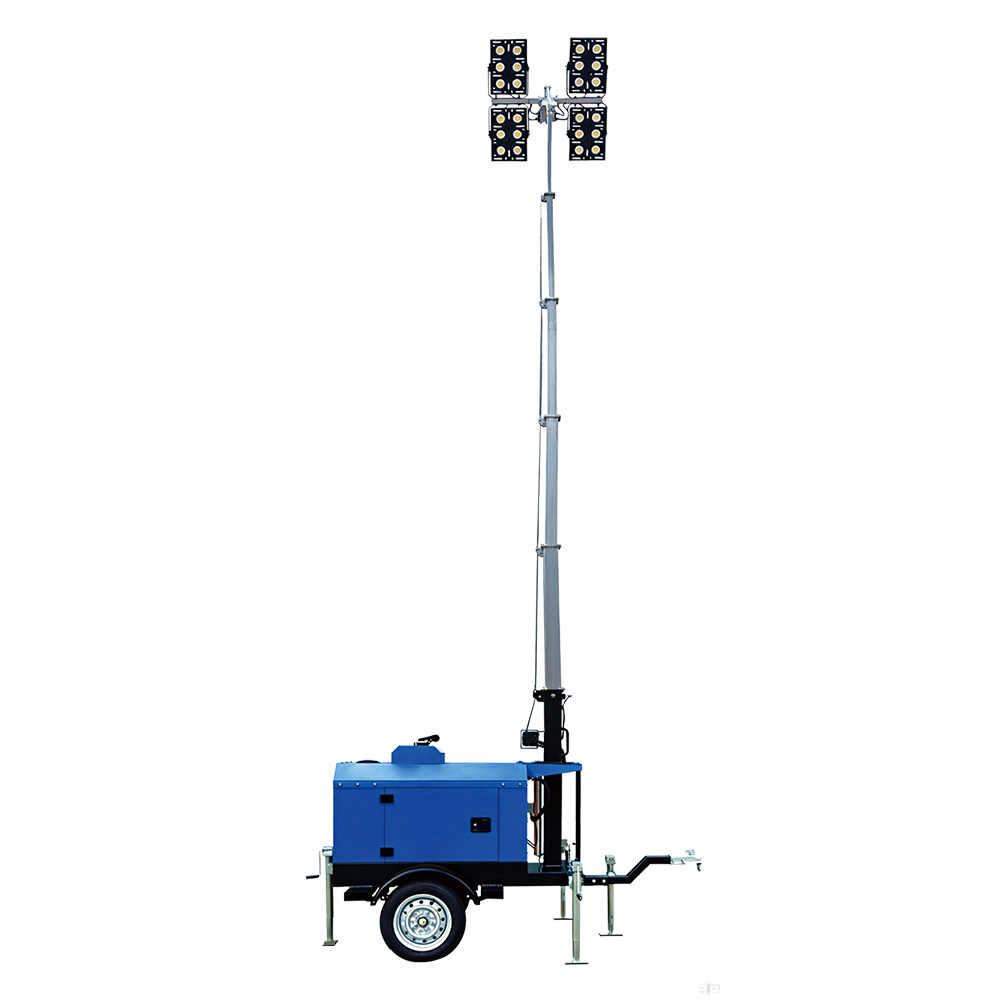

Telescopic, mechanical, 4 stages mast up to 9 meters new unique high pressure aluminum lamps.
Heavy-duty winch design and integral forklift pockets.
High frequency generator, easy to maintain.
Hydraulic/Electric/Manual winch for extending and retracting mast.
Weather protected and noise insulation enclosure
Auxiliary big fuel tank.
Inquiry Now
- 50HZ
- 60HZ
- Features
- FAQS
| Genset Model | Prime Power | Standby Power | Engine model | Mast Height(m) | Number & Power of the lights | Dimension for transportation(mm) | Datasheet |
| KW | KW | ||||||
| HLT-6700T | 4.5 | 5 | KD186FAE | 4 | 4*1000w | 1100x850x800 | |
| HLTK-C7 | 6 | 7 | D1105-E2BG | 8 | 4*1000w | 1370x750x1000 | |
| HLTK-V7 | 6 | 7 | D1105-E2BG | 8 | 4*1000w | 1950x1300x1010 | |
| HLTY-V7 | 6 | 7 | HA130/4 | 8 | 4*1000w | 1950x1300x1010 | |
| HLTK-H7 | 6 | 7 | D1105-E2BG | 8 | 4*1000w | 2400x1800x2540 |
| Genset Model | Prime Power | Standby Power | Engine model | Mast Height(m) | Number & Power of the lights | Type of lights | Datasheet |
| KW | KW | ||||||
| HLT-6700T | 5 | 5.5 | KD186FAE | 4 | 4*1000w | 1100x850x800 | |
| HLTK-C7 | 7 | 8 | D1105-E2BG | 8 | 4*1000w | 1370x750x1000 | |
| HLTK-V7 | 7 | 8 | D1105-E2BG | 8 | 4*1000w | 1950x1300x1010 | |
| HLTY-V7 | 7 | 8 | HA130/4 | 8 | 4*1000w | 1950x1300x1010 | |
| HLTK-H7 | 7 | 8 | D1105-E2BG | 8 | 4*1000w | 2400x1800x2540 |
Expansive & Efficient Illumination
HZ's parallel lamp structure significantly outperforms competitive systems, delivering up to **50% greater light output** with superior efficiency. Our innovative lamp shade design features a unique top structure that redirects an additional **10% of previously lost upward light** directly onto the work site, maximizing usable illumination.
Dual-Purpose Functionality
The integrated generator doesn't just power the lights—it serves as a **reliable backup power source** in emergencies. Two conveniently located receptacles on the mast allow you to switch off the lights and connect other equipment. These outlets can be configured to match your specific voltage requirements: **120V, 230V, or 240V**.
Durable Halide Lamp Technology
Our metal halide lamps are engineered for longevity and performance. Light is generated by an electrical discharge through internal gases, **eliminating the fragile filament** found in conventional bulbs. This robust design means no filament to break or degrade over time and no disposable bulbs to replace.
Engineered for Safety
Operation is safeguarded by an **intelligent interlock system**: the mast cannot be raised unless the footbrake is securely engaged. If the brake is released, the mast **automatically retracts** to its travel position. Furthermore, the integrated trolley is equipped with stabilizers to ensure a steady and secure footing on any surface.
Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2:what is your power range of your diesel generator?
A: we can provide power from 8KVA-4000KVA and comprehensive power solutions for you
Q3: How long is your delivery time?
A:4-6 weeks
Q4: What's your MOQ?
A:1 set.
Q5: What is your terms of payment ?
A: T/T 30% in advance and TT 70% balance paid before shipment.
Q6: What is your warranty period?
A: Our warranty period is 1 year or 1000 running hours whichever comes first. But based on some special project, we can extended our warranty period.
Q7: Do you offer OEM service?
A: Yes.
Q8: How could I trust you?
A: Diesel Service & Supply stands behind the quality of all the generators and industrial power equipment we sell. If you are not convinced by the pictures, videos, check-in reports, load tests, customer experiences and sales associates’ knowledge about the generator you are interested in, then we invite you to come visit our expansive yard and shop facility to witness a load test and see the professional operation we have going on here.
Q9: After received the genset what should I do ?
A: After you got the generator, please read the operation manual carefully.
The User's Manual come with the generator. With Operation, Installation , maintenance and repair guide.
